Outdoor Misting Cooling — Fan Misting for Texas Patios

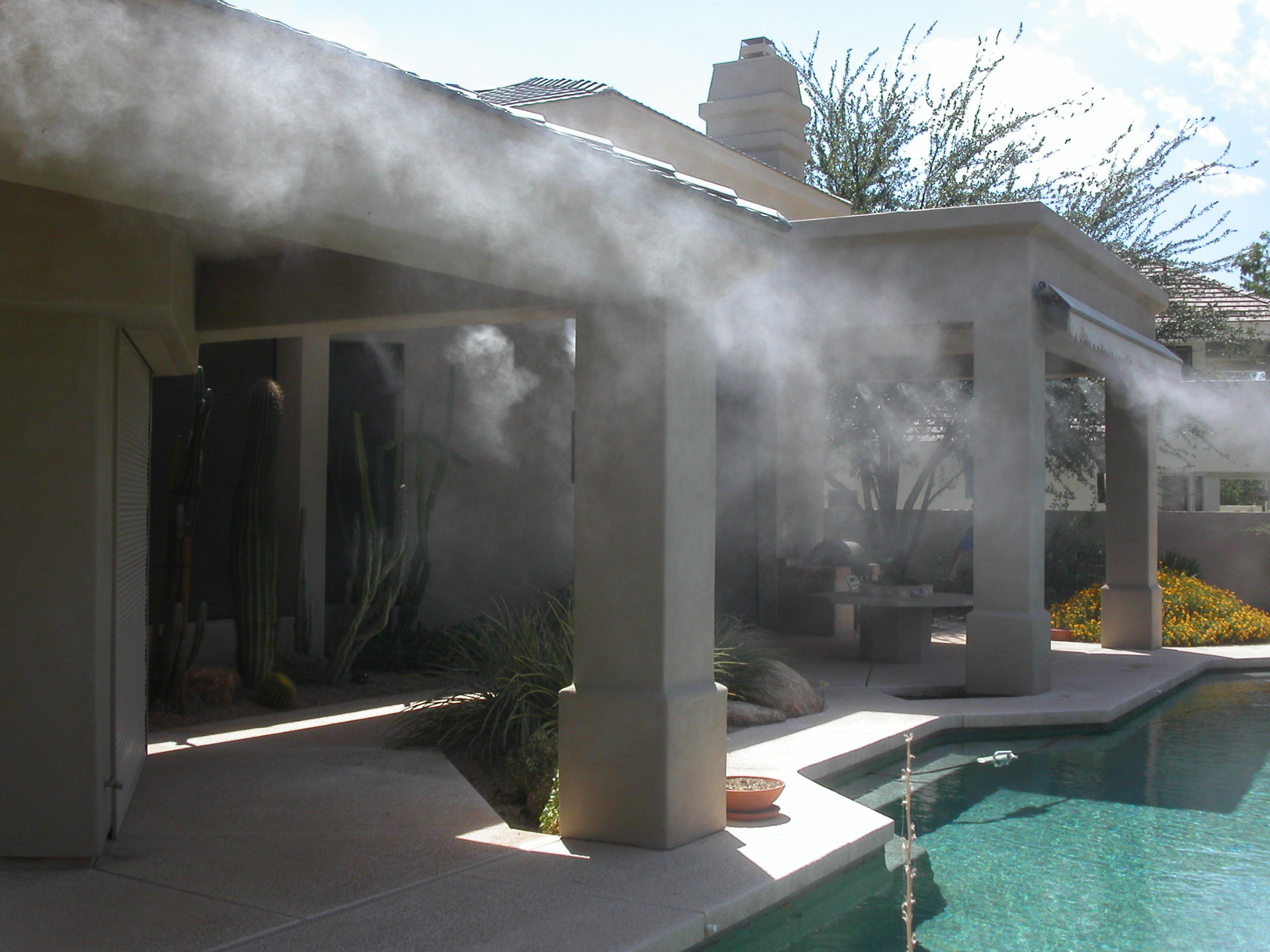

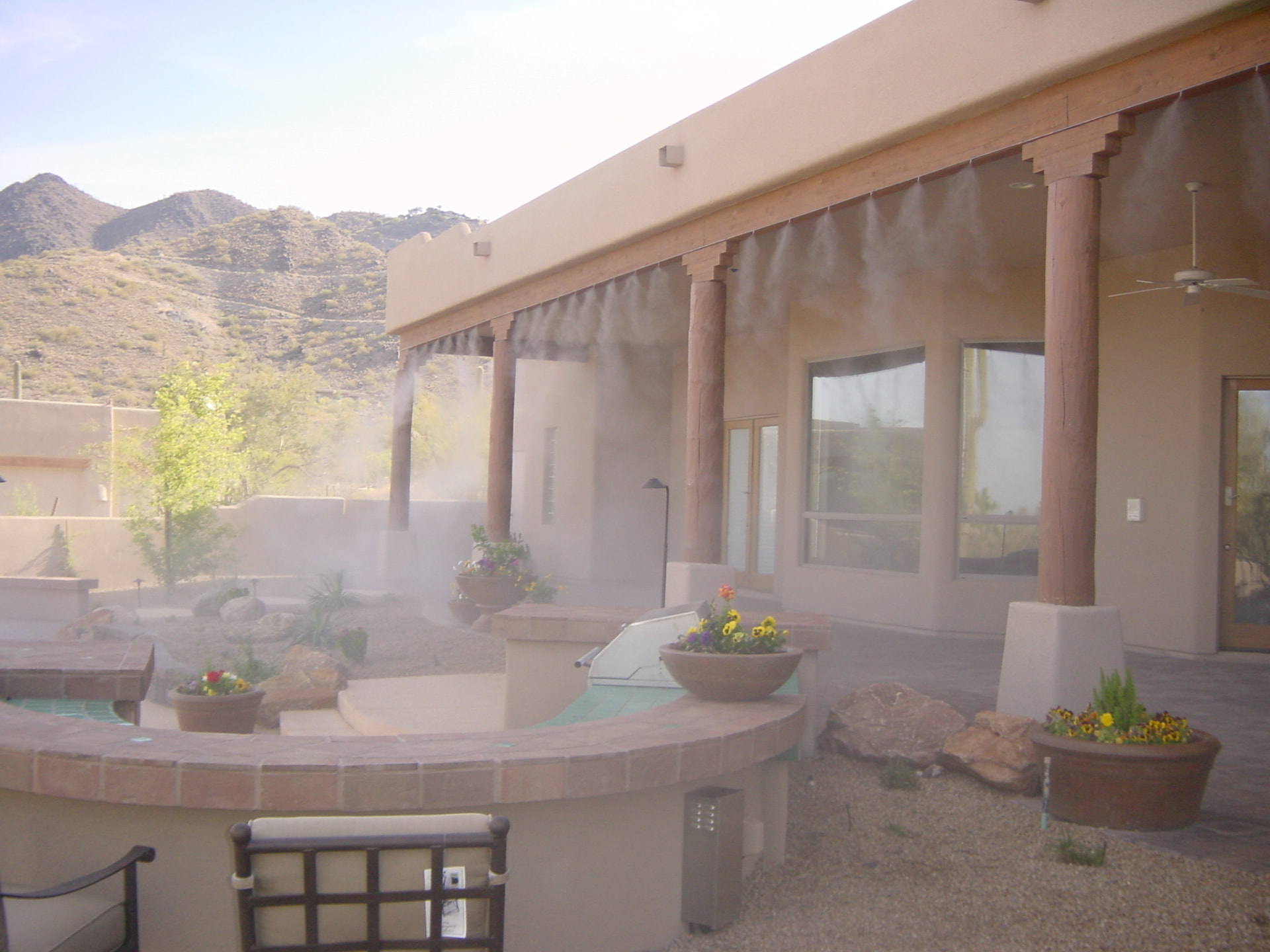

Our rep sizes misting for real Texas weather, not dry-climate assumptions. In higher-humidity areas like San Antonio, Austin, New Braunfels and Seguin, a traditional mist line adds more water to air that is already holding moisture. The fog does not evaporate fast enough, so the patio feels damp instead of cool. We lead with misting fans because the fan does two jobs: it atomizes the water in front of it, and it moves that cooled air across the seating area so you feel the drop.

• Smaller .006 nozzles create finer droplets that evaporate faster in front of the fan
• The fan carries cooler, drier air out into the patio instead of letting mist settle
• Oscillating fans sweep 90 degrees for coverage across seating, bars and work areas
• Wall-mounted or pedestal placement fits the layout without blocking walkways
• In high humidity, moving air works where still mist lines only add moisture
• Fan misting pairs with drop screens, awnings and pergolas to hold the cool air in place

Every misting fan we quote is built around the same idea: put the right amount of finely atomized water in front of moving air. The difference is how it mounts and how large an area it needs to cool.

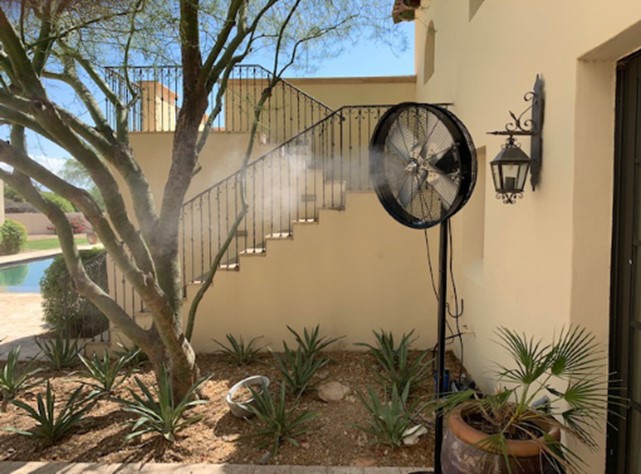

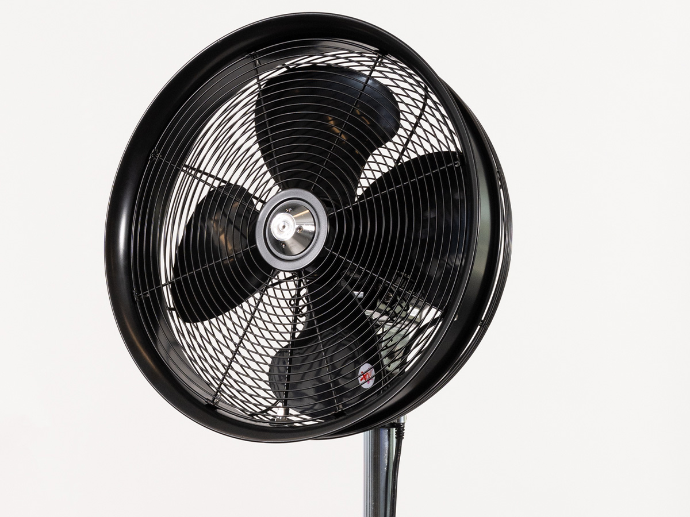

• Oscillating pedestal fan — portable, rolls where you need it, runs off a hose and a plug
• Wall-mounted oscillating fan — out of the walkway, aimed at seating or a bar

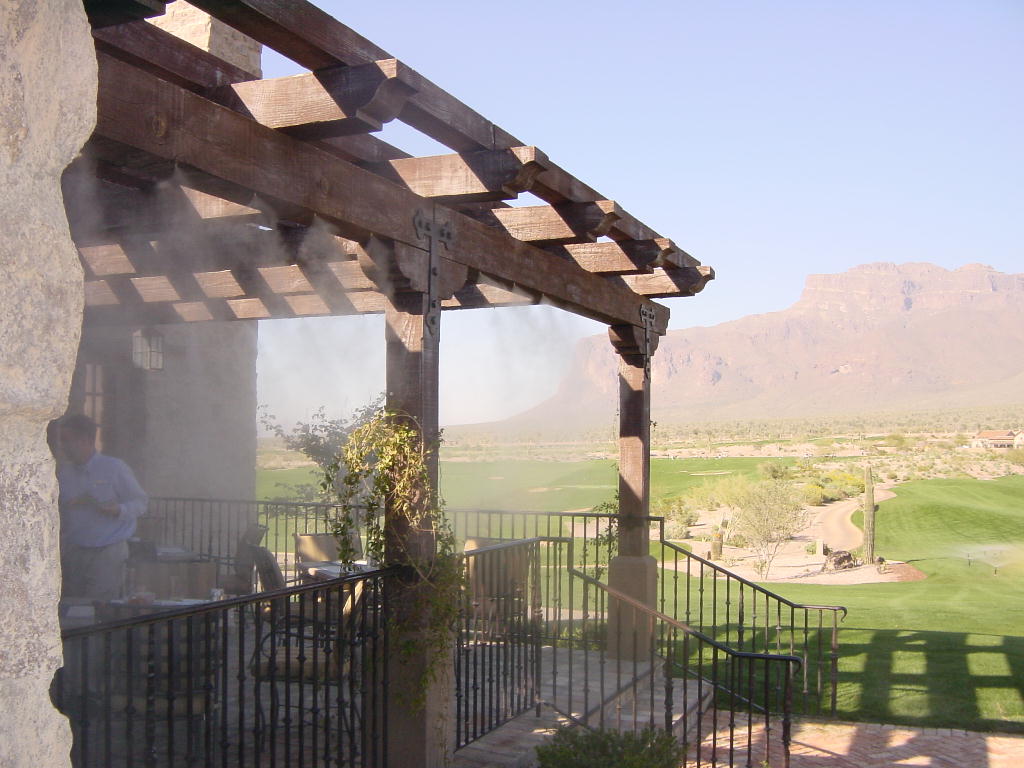

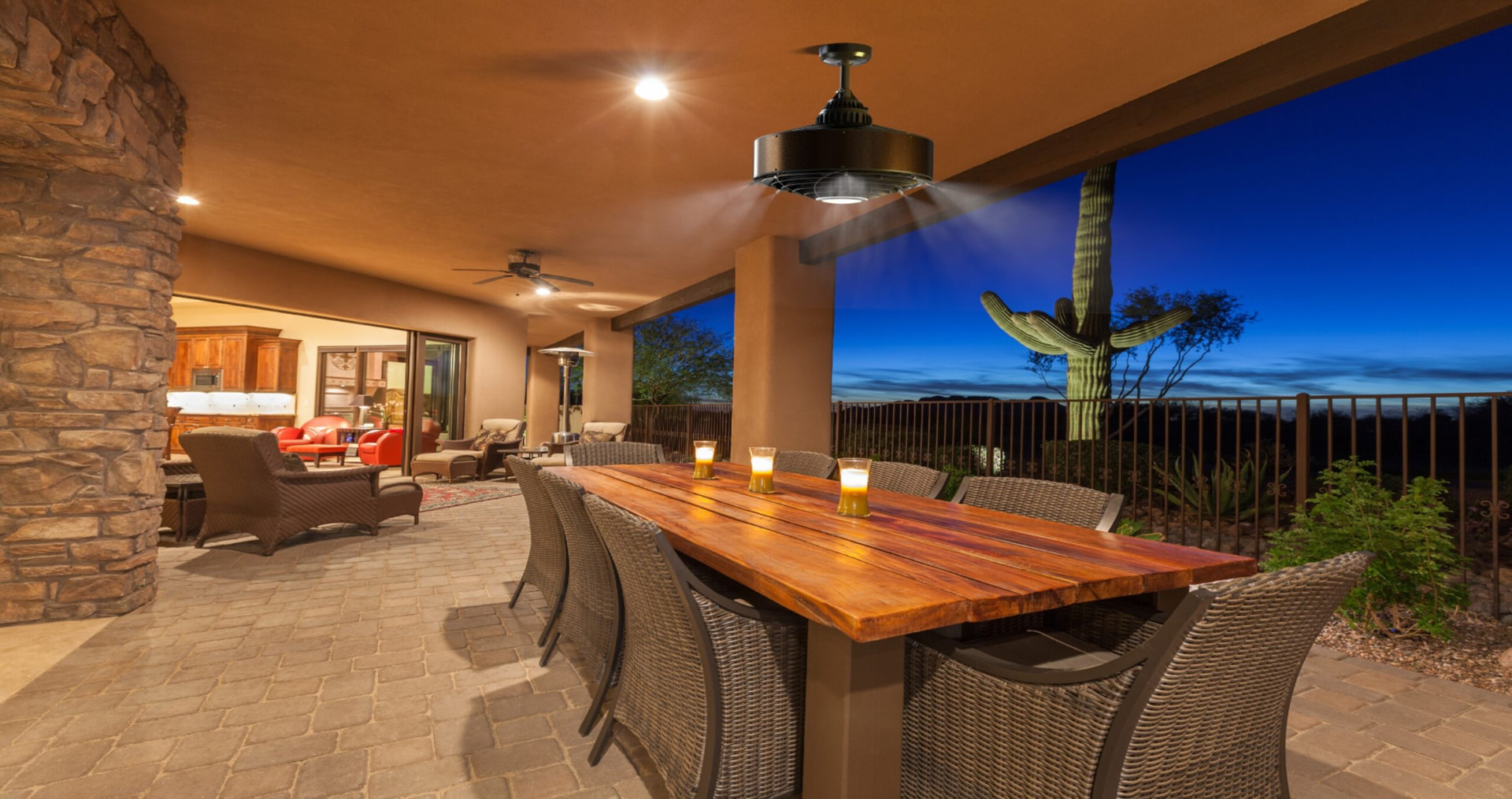

• Post- or beam-mounted fan — built into a pergola, patio cover or awning frame

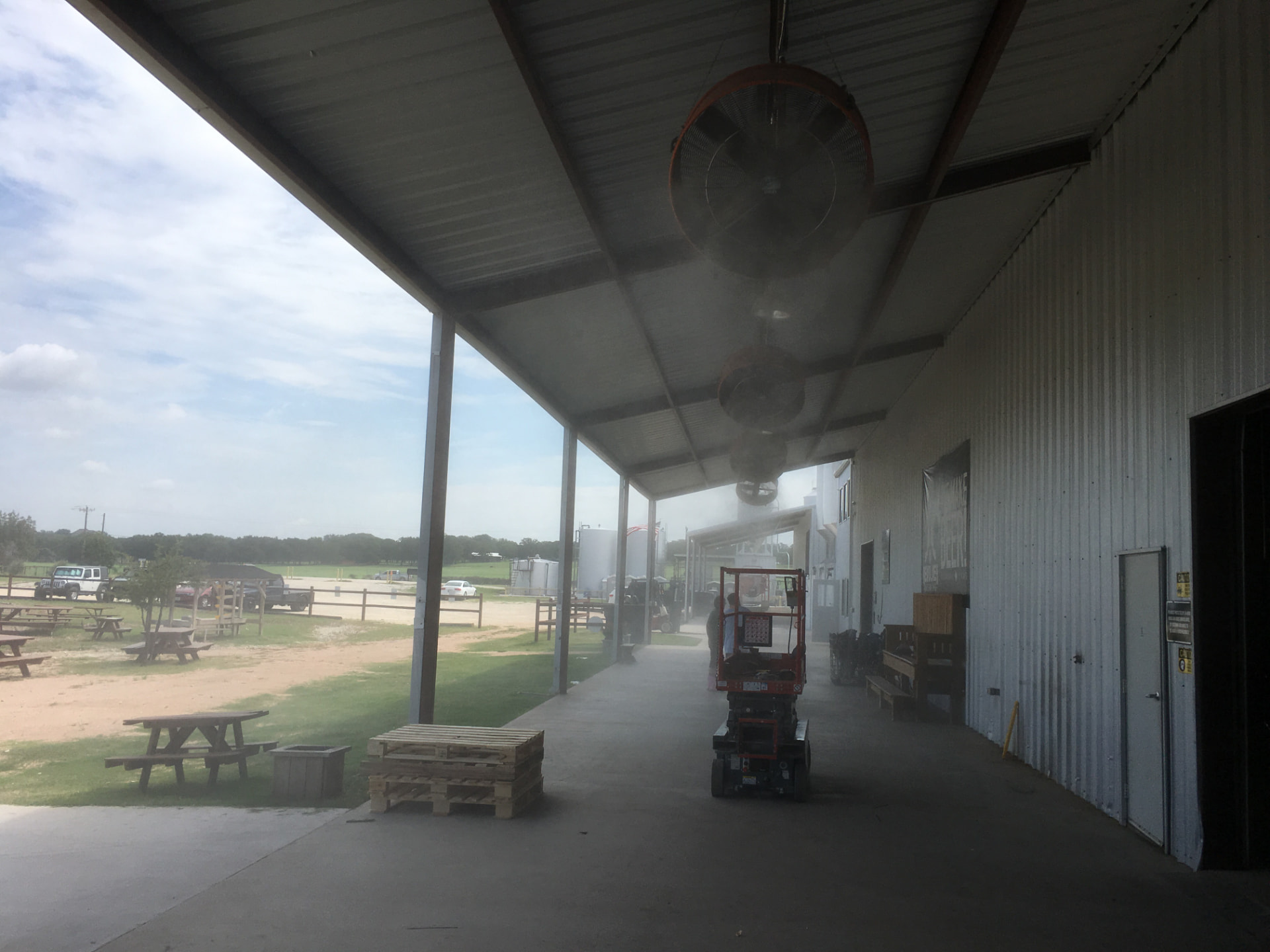

• Multi-fan pump system — 2 to 8 fans on one high-pressure pump for restaurant decks, barns and shops
• All fan kits include the pump, stainless nozzles, high-pressure line and push-lock fittings

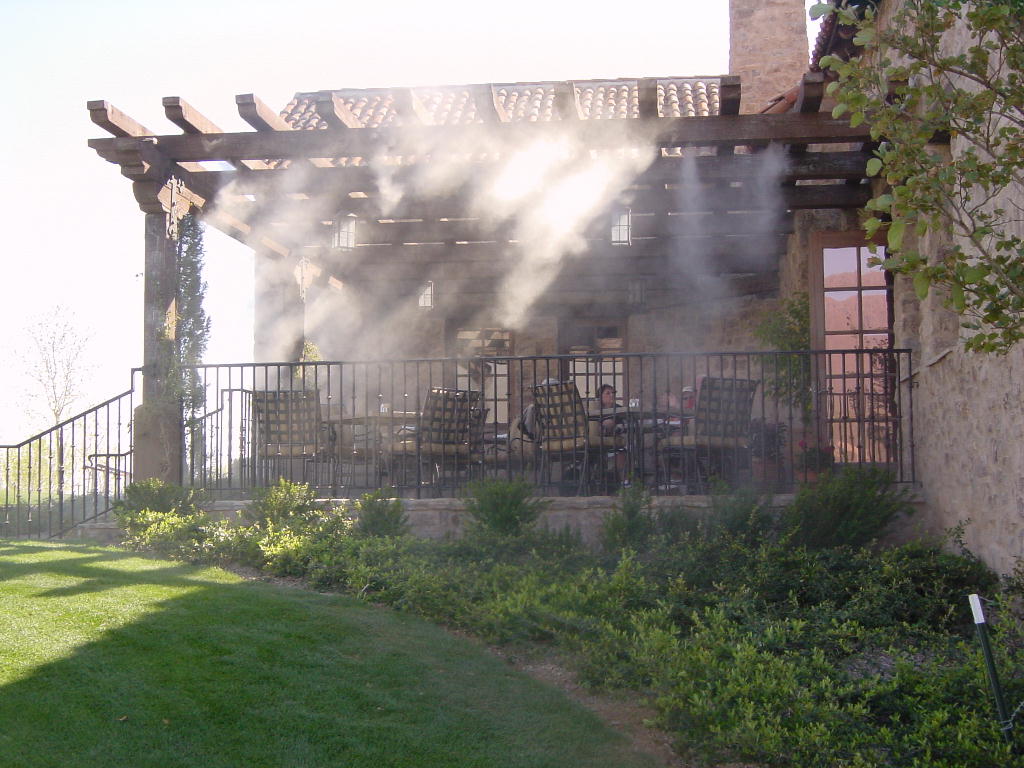

Nozzle size is what separates a cooling mist from a wet drizzle. We typically spec .006 nozzles on misting fans because the smaller opening produces a finer droplet. A finer droplet has more surface area relative to its volume, so it flashes into vapor faster — exactly what you want when humidity is already working against evaporation. Combined with high pressure and the fan's air movement, the water cools the air instead of landing on your furniture.

• .006 nozzles produce finer droplets that evaporate before they drift down
• High-pressure pump (typically 1,000 PSI) forces water through the tiny orifice
• Fan air movement extends the evaporation window and pushes cooled air outward
• Fewer nozzles, better aim and proper spacing prevent oversaturation
• Stainless nozzles resist clogging from hard Central Texas water

Texas Made Shade is a retail dealer for Aeromist, a manufacturer of high-pressure misting fans and misting components. That means you buy factory equipment with factory parts behind it, spec'd and installed by our own crew in Seguin instead of guessed at from a big-box kit. We size the pump to the nozzle count, quote the exact fan and tubing package, install it, and service it later — one company for the shade and the cooling.

• Factory Aeromist fans, pumps, nozzles, tubing and fittings
• Systems spec'd for your patio, not a one-size box kit
• Replacement parts and service through us, not a call center
• Quotes list fan count, pump pressure, nozzle count and tubing run
• Heater circuits planned with the same frame so controls are in one place
• Financing available through Acorn Finance

A misting system feels premium or cheap based almost entirely on the install. Because we fabricate the awnings, pergola covers and screens ourselves, the water and power get planned with the structure: tubing inside the beams, the pump tucked out of sight with service access, controls where you actually stand.

• High-pressure tubing routed inside frames, beams and posts
• Pump mounted discreetly with a filter and service access
• Nozzle spacing and aim set so nothing gets soaked
• Outdoor-rated power and a dedicated water tie-in
• Retrofits onto most sound existing patios and structures
• Optional automation: timers, temperature triggers and phone control through the Lone Star Series™

Cooling is only half of a year-round patio. Once summer is handled, the chill becomes the problem — and a covered or screened space can go further than heat alone. Infrared patio heaters, mini-split and spot cooling for semi-enclosed outdoor rooms, and the controls that tie them together all live on our Outdoor Heating & Cooling page, and we plan them on the same beams and circuits as your misting system.

• Infrared radiant heat mounted to the same frames as the misting fans
• Cooling equipment for covered, screened and semi-enclosed rooms
• Motorized drop screens that hold cooled or heated air in the space
• One set of controls for misting, heat, screens and lighting
• Quoted together so the wiring and water are planned once
